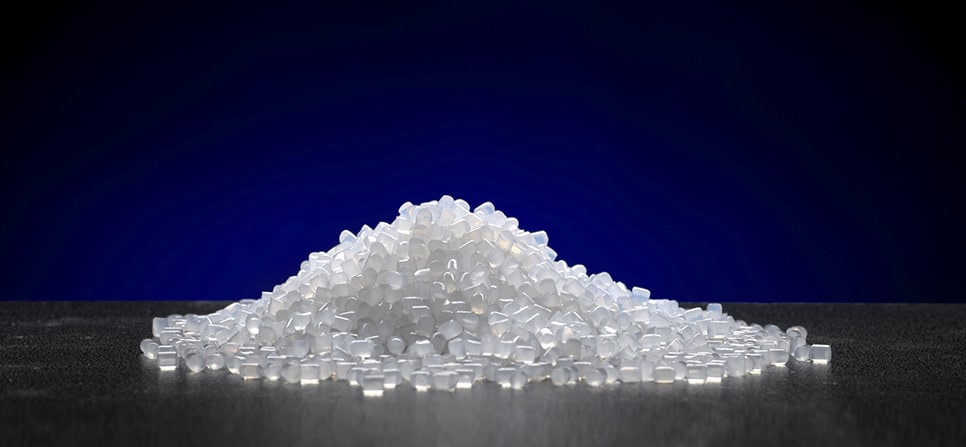

FEP 100 X
Fluoroplastic Resin

For inventory control purposes, product name may be followed by an X. Products labeled FEP 100 and FEP 100 X are equivalent, and all information in this document is applicable to both.

Description
FEP 100 is a general-purpose grade and is used in many different applications. It can be melt-extruded,and is used for wire coating as primary insulation and,in certain cases, for cable jacketing. Cables insulated with FEP 100 have met the requirements of Underwriters Laboratory UL910 Steiner Tunnel tests for installation in plenums without metal conduits.

Typical Applications:
Wire and cable insulation, small tubing, and injection molded parts.

Food Contact Compliance
Properly processed products made from FEP 100 resin can qualify for use in contact with food.

Processing
FEP 100 fluoroplastic resin can be processed by conventional melt extrusion, and by injection, compression, and blow molding processes. For smooth feeding to extrusion equipment, it is supplied in 3 mm (0.12 in) pellets. The extruders and molding machines used for FEP 100 should be constructed of high nickel alloy corrosion-resistant materials and be capable of operating at temperatures up to 400 °C (750 °F).

Storage and Handling
The properties of FEP 100 resins are not affected by storage time. Ambient storage conditions should be designed to avoid airborne contamination and water condensation on the resin when opening and emptying the packaging.

Packaging
FEP 100 is packaged in 25-kg, single layer, plastic bags.

We can give discount according to order quantity.

We also have good experience in transportation both by air and ocean to overseas.

Grade	MFR (g/10 min) ASTM D2116	Melting Point °C (°F) ASTM,D4591/D3418	Features	Applications
General-Purpose
100	7	260 (500)	General- purpose resin with medium melt flow rate	Wire and cable insulation Small tubing Injection-molded parts
106	100	255 (491)	High productivity grade	Small diameter, thin wire, and cable insulations Injection-molded intricate/thin wall parts
Improved Stress Crack Resistance
9302	255	260 (500)	Good viscosity, highest degree of stress crack resistance	Extruded or molded parts for chemical industries Jackets for wire and cable applications
CJ95	5	255 (491)	Low MFR, higher degree of stress crack resistance	Telecommunication plenum cable jacketing
CJ99	9	255 (491)	High degree of stress crack resistance	Jacketing resin for a wide range of wire sizes and wall thicknesses
Superior Electrical Properties
9494	30	255 (491)	Improved dissipation factor at high frequencies. Significant plateout resistance in melt extrusion	Small diameter, thin wall wire and cable insulation Industrial film Intricate/thin wall parts
9495	30	255 (491)	High speed, premium resin with improved adhesion to copper wire	Small diameter, thin wall wire and cable insulation Industrial film Injection-molded intricate/thin wall parts
9835	20	255 (491)	Medium melt flow resin with improved adhesion to copper wire under specific wireline process conditions	Small diameter, thin wall wire and cable insulation Industrial film Injection-molded intricate/thin wall parts
9898	30	255 (491)	Best-in-class dissipation factor at high frequencies (>10 GHz). Significant plateout resistance in melt extrusion	Small diameter, thin wall wire and cable insulation Industrial film Injection-molded intricate/thin wall parts
Specialty
9819FL	30	255 (491)	Specialty resin available as loosely compacted fluff	Special application processes requiring even dispersion of fluoropolymer resin in a matrix
